7075 T6 Aerospace Grade Aluminum Sheet 3.0mm Zinc Magnesium Copper Alloy High Strength for Aircraft Wing Components

  • 7075 T6 Aerospace Grade Aluminum Sheet 3.0mm Zinc Magnesium Copper Alloy High Strength for Aircraft Wing Components
Miejsce pochodzenia Shandong, Chiny
Nazwa handlowa CHALCO
Orzecznictwo ISO 9001:2015, ASTM B209, AMS 4045, SAE AMS-QQ-A-250/12
Numer modelu AL7075-T6-3.0
Minimalne zamówienie 1 tona
Cena USD 3850-4450 / Ton
Szczegóły pakowania Antykorozyjna powłoka olejowa, folia ochronna PE po obu stronach, wzmocniona drewniana paleta ze sta
Czas dostawy 15-25 dni roboczych po potwierdzeniu zamówienia
Zasady płatności T/T, L/C w zasięgu wzroku
Możliwość Supply 3000 ton miesięcznie
Szczegóły Produktu
Stop 7075 Hartować T6 (sztucznie starzone poddane obróbce cieplnej)
Grubość 3,0 mm Szerokość 1219 mm / 1500 mm
Długość 2438 mm / 3000 mm / 4000 mm Zawartość cynku 5,1-6,1%
Zawartość magnezu 2,1-2,9% Wytrzymałość na rozciąganie ≥540 MPa
Siła plastyczności ≥470 MPa Twardość ≥150 HB
Podkreślić

Aerospace Grade Zinc Alloy

,

Ultra High Strength 7075 Sheet

,

3.0mm Aircraft Structural Wing Plate
Zostaw wiadomość
opis produktu

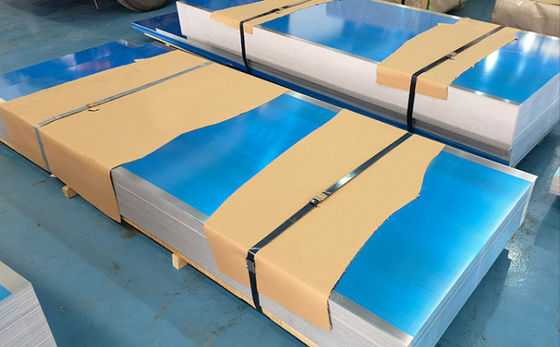

7075 T6 Aerospace Grade Aluminum Sheet 3.0mm Zinc Magnesium Copper Alloy High Strength for Aircraft Wing Components
Ultra-High Strength at One-Third the Weight of Steel

Our 7075 T6 Aerospace Grade Aluminum Sheet is the highest strength aluminum alloy commercially available, with tensile strength exceeding 540 MPa — approaching that of structural steel at only one-third the weight. Engineered with a zinc-magnesium-copper alloy system and fully heat treated to T6 temper, this 3.0mm sheet is the definitive choice for aircraft structural components, wing spars, fuselage frames, and high-stress aerospace applications where failure is not an option.

Key Features
  • Ultra-High Strength: ≥540 MPa tensile strength and ≥470 MPa yield strength, comparable to mild structural steel (S235) but at only 34% of the weight
  • Zinc-Magnesium-Copper Alloy: 5.1-6.1% Zn, 2.1-2.9% Mg, and 1.2-2.0% Cu provides precipitation hardening capability for maximum mechanical properties
  • Full T6 Heat Treatment: Solution treated at 480°C, water quenched, and artificially aged at 120°C for 24 hours for peak strength and hardness
  • Excellent Fatigue Properties: Superior fatigue crack growth resistance critical for cyclic loading in aerospace structures
  • Outstanding Strength Retention: Maintains significant strength at moderately elevated temperatures up to 120°C continuous service
Applications
  • Aircraft wing spars and ribs
  • Fuselage frames
  • Missile components
  • High-performance bicycle frames
  • Rock climbing equipment
  • Competition firearms receivers
  • Molds for plastic injection
  • Precision structural components where weight reduction is critical
Quality Assurance
Comprehensive Testing & Certification

Every sheet undergoes electrical conductivity testing (32-36% IACS for T6 verification), ultrasonic C-scan inspection for internal integrity per AMS-STD-2154 Class A, chemical analysis by OES, tensile testing per ASTM E8, and hardness testing. AMS 4045 aerospace specification compliance with full melt-to-product traceability. NADCAP-accredited testing laboratory certification available.
