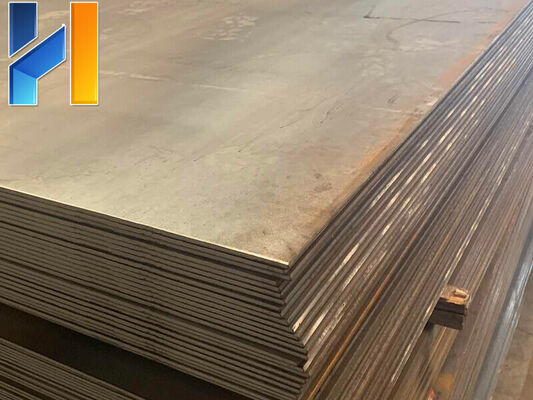

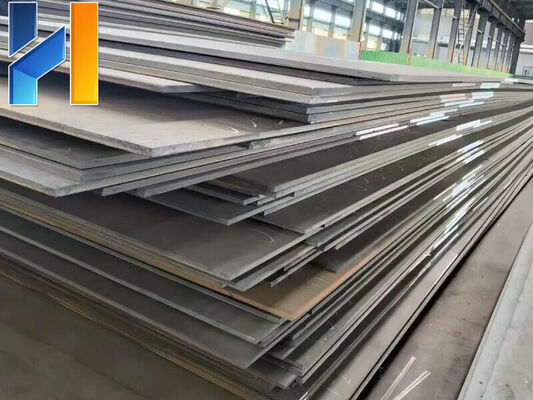

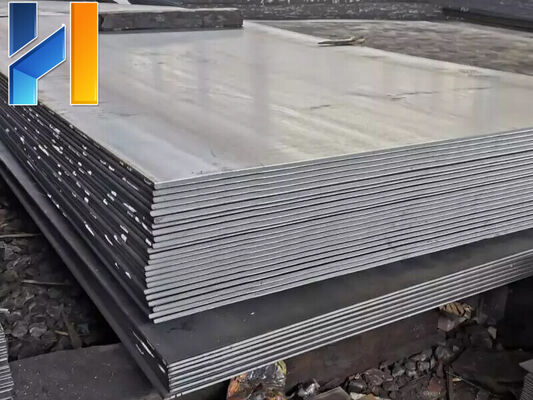

Cold Rolled And Hot Rolled Carbon Steel Plate and Sheet with 0.15mm-300mm Thickness in JIS ASTM GB DIN EN Standard

Szczegóły Produktu

Grubość	0,15 mm-300 mm	Szerokość	1250 mm, 1500 mm lub niestandardowe
Długość	1000 mm-12000 mm lub niestandardowe	Technika	Walcowane na zimno i walcowane na gorąco
Zawartość węgla	Stal wysokowęglowa (0,60 – 1,25% wag.)	zawartość C	0,15% wag.
Zawartość Si	0,75% wag.	Zawartość Mn	2,00% wag.
Treść P	0,06-0,12% wag.	Zawartość S	0,008% wag.
Zawartość Cu	0,25-0,50% wag.	Mikrostruktura	Perlit
Klasy materialne	ASTM: klasa B, C, D, A36, 36-80; PL: S185-S690Q; JIS: SS330-SPHE	Twardość	Wysoki
Plastyczność	Niski
Podkreślić	Cold Rolled And Hot Rolled Carbon Steel Plate , 0.15mm-300mm Thickness Carbon Steel Sheet , JIS ASTM GB DIN EN Standard Steel Plate

Zostaw wiadomość

opis produktu

Carbon Structural Steel Plate

Discover our high-quality Carbon Structural Steel Plates, engineered with less than 0.8% carbon content. These plates offer superior mechanical properties due to their reduced sulfur, phosphorus, and non-metallic inclusion content, making them ideal for demanding industrial applications.

Key Advantages

Enhanced Mechanical Properties
Superior Durability
Versatile Applications
Industry-Grade Quality

Target Industries

Construction Automotive Manufacturing Heavy Machinery Shipbuilding

Product Specifications

Product Name	Standard	Material Grades	Dimensions
Carbon steel sheet / steel plate	JIS, AISI, ASTM, GB, DIN, EN	ASTM: Grade B, C, D, A36, 36, 40, 42, 50, 55, 60, 65, 80 EN: S185, S235JR, S275JR, S355JR, S420NL, S460NL S500Q, S550Q, S620Q, S690Q JIS: SS330, SPHC, SS400, SPFC, SPHD, SPHE	Thickness: 0.15mm-300mm Width: 1250mm, 1500mm or custom Length: 1000mm-12000mm or custom
Technique	Cold Rolled And Hot Rolled

Weathering Steel Grades (Cor-ten & Equivalents)

Grade	C (wt.%)	Si (wt.%)	Mn (wt.%)	P (wt.%)
Cor-ten A	0.12	0.25-0.75	0.20-0.50	0.01-0.2
Cor-ten B	0.16	0.3-0.5	0.8-1.25	0.03
SPA-H	0.12	0.2-0.75	0.60	0.07-0.15
9CuPCrNi-A	0.12	0.2-0.75	0.20-0.50	0.07-0.15
Q235NH	0.13	0.10-0.40	0.20-0.60	0.03
Q295NH	0.15	0.10-0.50	0.30-1.00	0.03
Q355NH	0.16	0.5	0.50-1.50	0.03
Q415NH	0.12	0.65	1.10	0.025
Q460NH	0.12	0.65	1.50	0.025
Q500NH	0.12	0.65	2.0	0.025
Q550NH	0.12	0.65	2.0	0.025
Q265GNH	0.12	0.10-0.40	0.20-0.50	0.07-0.12
Q295GNH	0.12	0.10-0.40	0.20-0.50	0.07-0.12
Q310GNH	0.12	0.25-0.75	0.20-0.50	0.07-0.12
Q355GNH	0.12	0.20-0.75	1.00	0.07-0.15
Q345GNHL	0.12	0.25-0.75	0.20-0.50	0.07-0.15
Q295GQR2	0.12	0.10-0.40	0.20-0.50	0.06-0.12
Q295GQR3	0.12	0.20-0.40	0.25-0.55	0.06-0.12
Q345NQR2	0.12	0.25-0.75	0.20-0.50	0.06-0.12
Q345NQR3	0.12	0.20-0.50	0.25-0.70	0.06-0.12
Q400NQR1	0.12	0.75	1.10	0.025
Q450NQR1	0.12	0.75	1.50	0.025
Q500NQR1	0.12	0.75	2.00	0.025
Q550NQR1	0.16	0.75	2.00	0.025

Chemical Composition & Properties by Carbon Content

Carbon Content (wt.%)	Microstructure	Properties	Examples	Standards
Low-carbon steel (< 0.25)	Ferrite, pearlite	Low hardness and cost. High ductility, toughness, machinability and weldability	Low hardness and cost. High ductility, toughness, machinability and weldability	AISI 304, ASTM A815, AISI 316L
Medium-carbon steel (0.25 – 0.60)	Martensite	Low hardenability, medium strength, ductility and toughness	Low hardenability, medium strength, ductility and toughness	AISI 409, ASTM A29, SCM435
High-carbon steel (0.60 – 1.25)	Pearlite	High hardness, strength, low ductility	High hardness, strength, low ductility	AISI 440C, EN 10088-3
